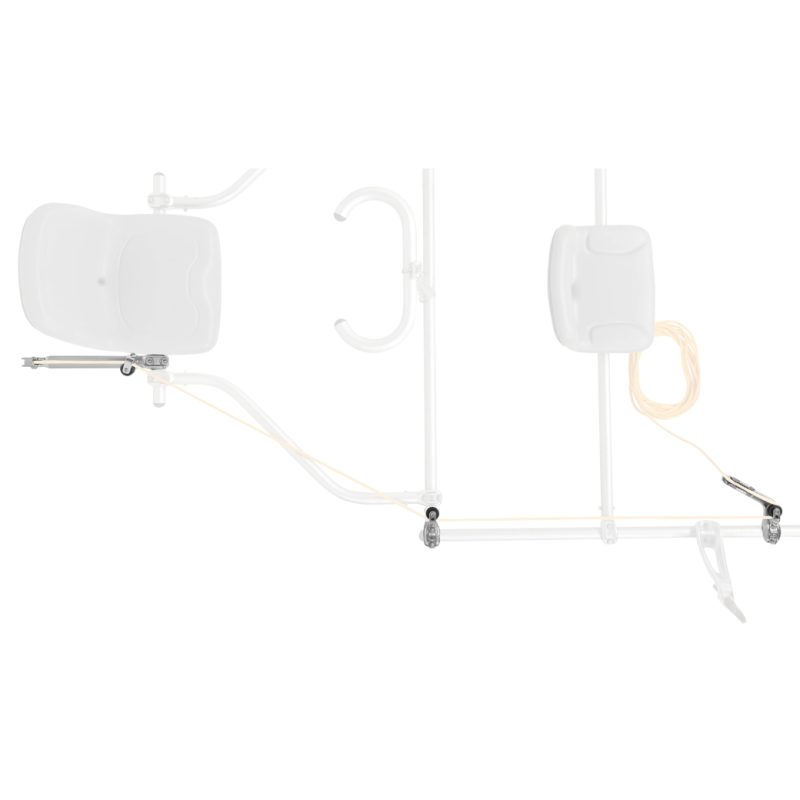

• Three main components, a remote bracket with jam cleat and intermediate pulley, create a 2:1 mechanical advantage, halving anchor weight when dropped or lowered.
• The stern pulley on the mast is slotted to allow for angle adjustment depending on the amount of kick the craft has. It is preset for maximum kick. For a flatter angle, loosen the bolt and nut and adjust to the desired angle and tighten.
• Includes standard U-bolt and oversized U-bolt with nuts and washers.

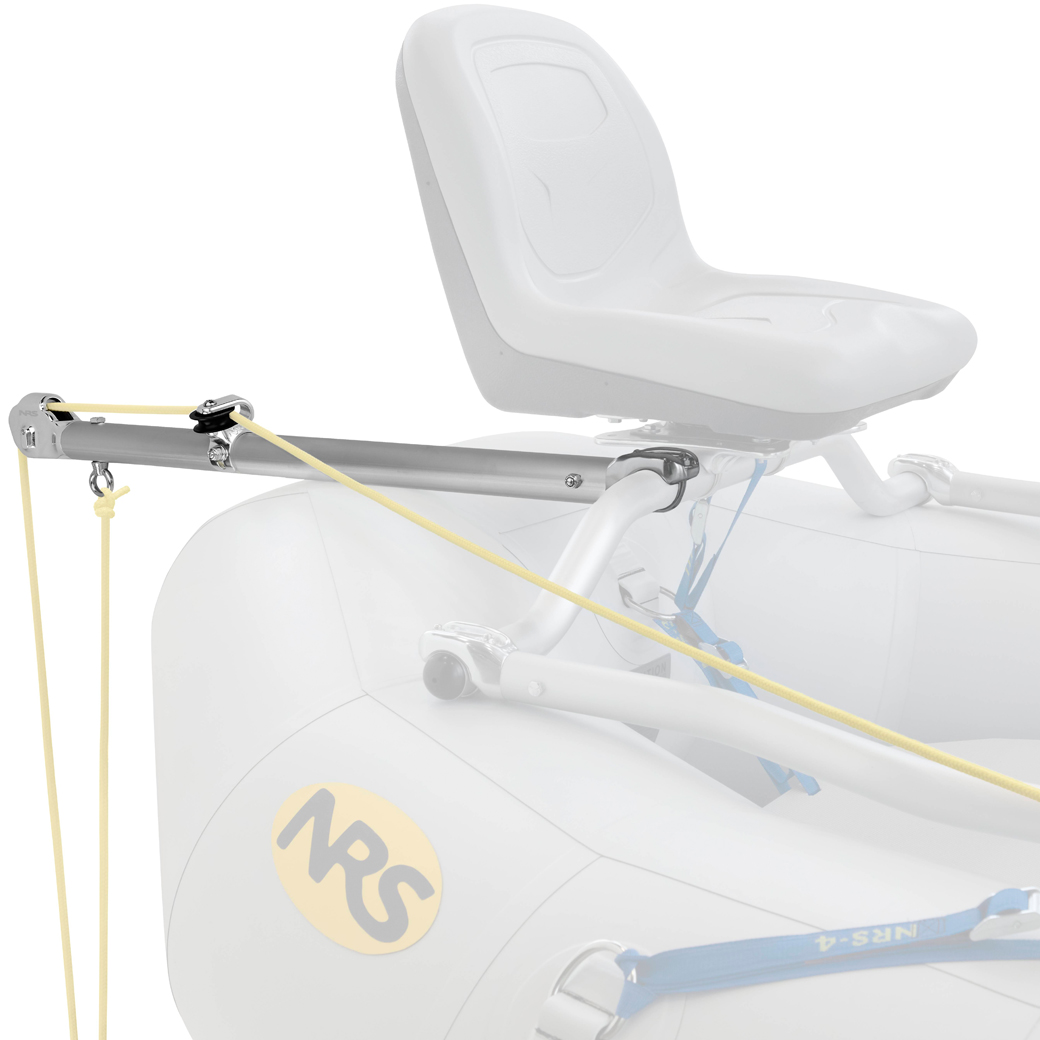

• The 31″ Long Mast with Forged LoPro Anchor System is a great addition to the Dodger Stern Seat Mount (Item # 92016.03) The extra length extends the anchor comfortably past the stern of your Otter Fishing Dodger XL Raft. Includes the Anchor Control System and Intermediate Pulley for Forged LoPro.
• Unlike previous anchor systems, this system works with both the older cast aluminum LoPros and current forged LoPros. The oversized U-bolt works best with the forged LoPros, while the standard U-bolt is best for the cast aluminum.
• Rope and anchor sold separately.
• We recommend 3/8″ double braided nylon anchor rope.

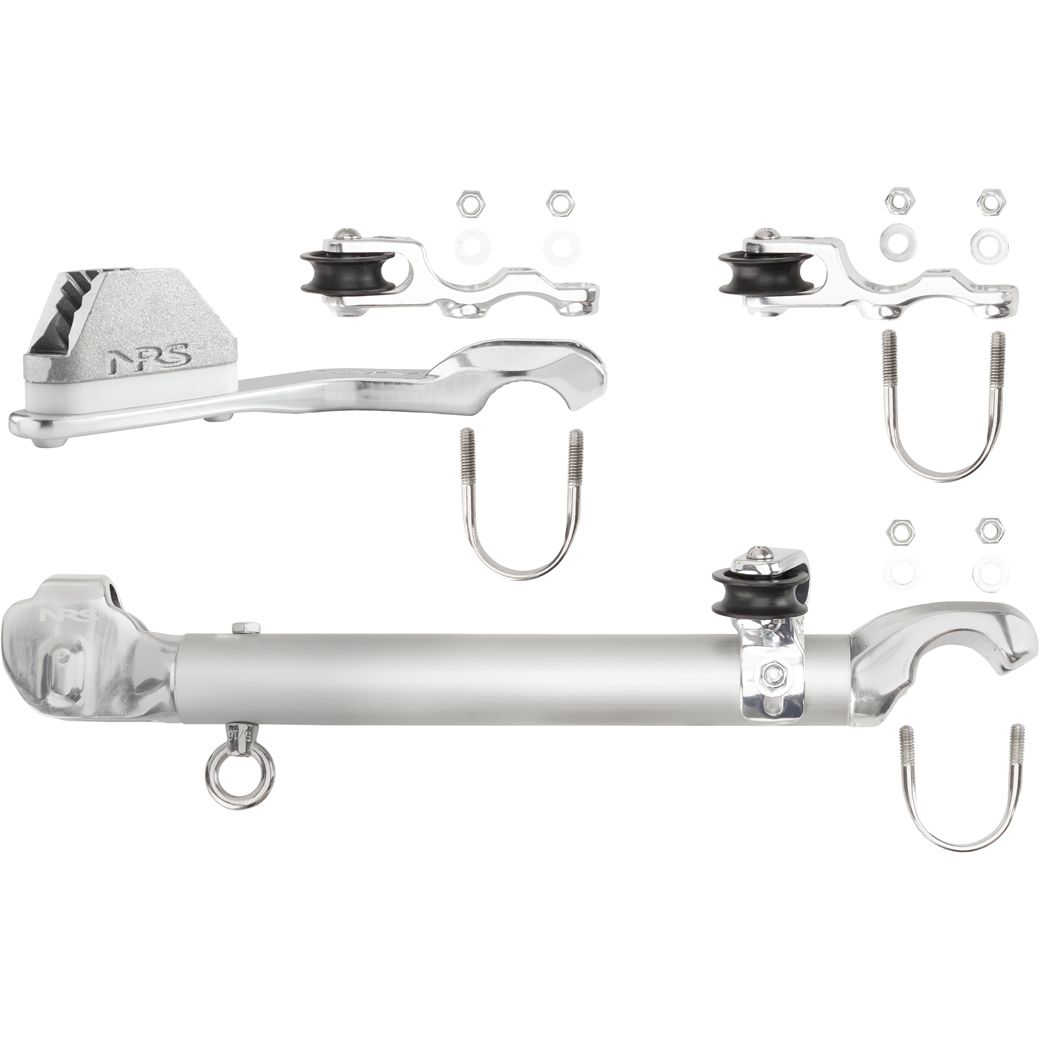

INCLUDED COMPONENTS

• 1 – Anchor Control System with Rope Jam Cleat
• 2 – Intermediate Pulley
• 1 – Anchor Mast
• 1 – U-bolt with nuts and washers
• 2 – Oversized U-bolts with nuts and washers
